Smart Turf
Irrigation Solutions

Nozzle:  Superior Spray

Cleaning: Extra-long filters provide a longer time between cleaning.

Connection size: ½” & ¾” female threaded bottom inlet & ½” female threaded side inlet.

Nozzles: Interchangeable, bayonet colour-coded nozzles.

Water distribution: Diffuser screw for fine droplets & throw control.

Nozzle: Female Threaded Nozzles

Wide Selection of Sizes: Available in 2

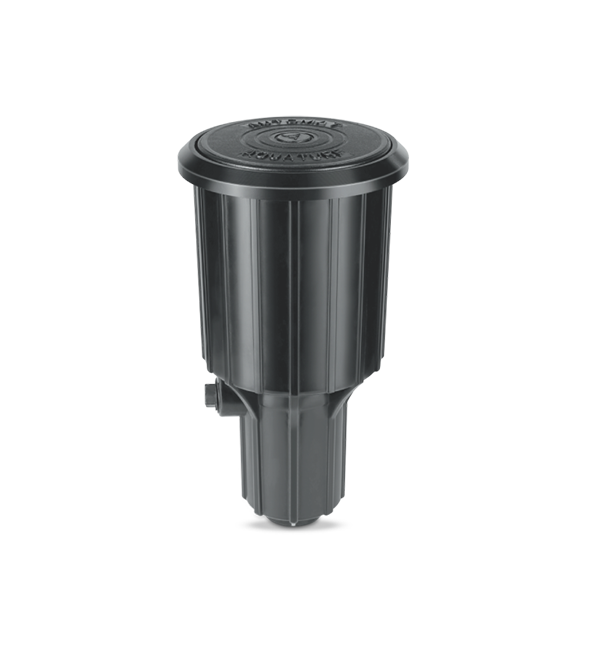

Heavy-Duty Retraction Spring: The strongest spring in the industry for positive retraction in all soil conditions.

Heavy Duty Rubber Cover: Protects against physical injury and reduces liability.

Wide Selection of Nozzles: Including standard and low angle, provides flexibility in system design to achieve matched precipitation.

Wide Selection of Nozzles: Including standard and low angle, provides flexibility in system design.

Full and Part circle rotation: provides a full adjustment range from 40º to 360º.

Adjustable arc: (40°-360°) All adjustments made from the top or dry. No special tools are needed.

Pressure Operation: Low-pressure operation.

Maximum operating pressure: range 3.0-8.0 kg/cm².

Radius range: 29.5-49.5 meters.

Connection Size: Available in 2” and 4” Models, which provide flexibility in system design.

Nozzle: Accepts female threaded nozzles.

Colour Coding:  Indicates one of six radius options, easy identification.

High uniformity: outstanding coverage, eliminates brown spots.

Flow: 1.0 GPM (0.227 m3/h; 3.8 l/m).

Pressure: 20 to 40 PSI (1.4 to 2.8 Bar).

Coverage: Short to Medium Range Watering 5.2 - 9.1m .

Riser height: 4'' (10cm).

Rubber Cover: Seals out dirt and increases product durability.

Optional Check Valve:  Prevents low head drainage.

Triple Nozzle configuration: Ensures even distribution of water.

Factory installed check valve:  Prevent low head discharge.

Electrical Outputs: 24 Volts AC, 0.8 AMP.

Electrical Power Supply: 4 x 1.5 volt AA alkaline batteries (not included).

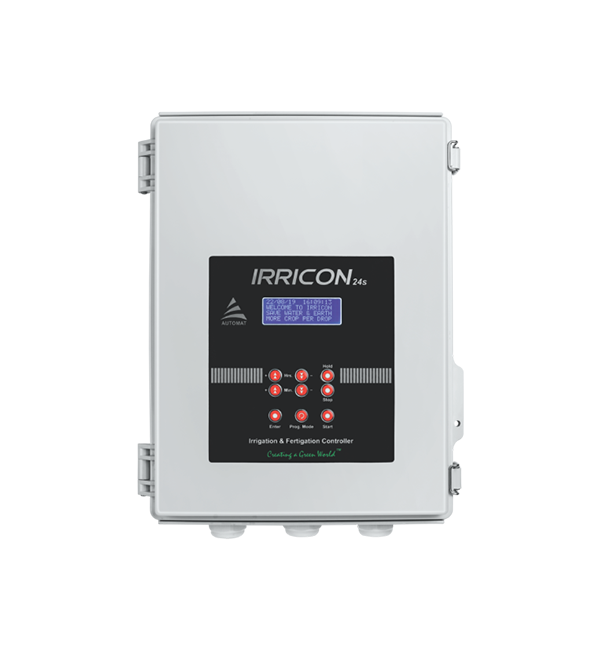

Models Available: Irricon 12S - 12 station Controller, Irricon 24S - 24 station Controller.

Rechargeable Time: Permits to program the rechargeable time (Well Recovery) in advance where there can be the situations when pump stop delivering the water as it goes below drawdown level and needs recharging or recovery.

Available in 2 Models: Logic Plus 425, Logic Plus 1285.

Station Capability: 42 /128.

 Station support: Upto 16 stations.

Start times:  6 per program.

Run time min/max: 1/240 minutes.

Watering frequency: from every 6 hours up to once every 15 days.

Pressure output: min 1.0 bar max 7.0 bar.

Pressure input: max 12 bar.

Automatic pump control.

Maintains water level in the tank.

• Supports up to 16 stations.
• Can operate up to 2 decoders simultaneously.

Material of Construction: Nylon Glass Filled 30%.

Self-cleaning stainless: steel metering pin.

Material: 100% polypropilene.

Security: The valve box has an anti-vandal bolt for additional security.
