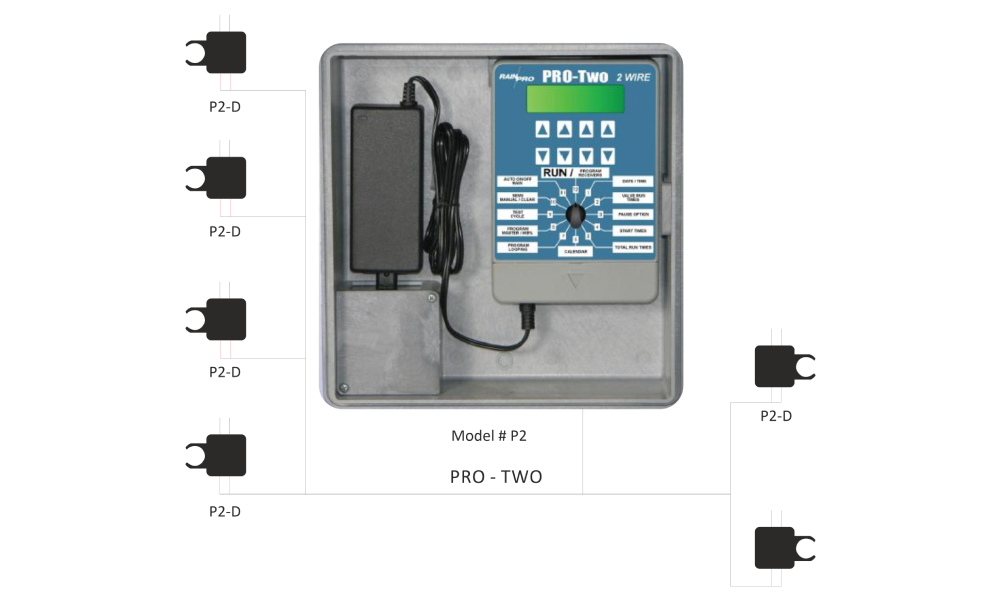

Pro Two Controller System

Lise minimum 1.5 sq. mm Wire with a maximum of 2000' wire run system wiring shall allow for unlimited tees and crosses in field wo wire path.

Controller:

• Controller to have up to 16 Stations.
• Amaximum of 2 Decoders can operate simultaneously of same or different numbers plus a Master Valve or Pump Start Relay. Controller to have 6 independent programs.
• Water Budget feature operates from 5%-250% increments by Program
• Maximum of 6 start times per program.
• Will operate each valve number either, Automatically, semi- Automatic or Manually.
• Programmed Rain Delay.
• Outdoor model has lock and keys in weather Resistant box.

Decoders:

• Decoders is programmable at controller to any station number from 1-16 and MV/PS.
• Decoder has two red wires to connect to system two wire field path and two black wires to connect to any standard 24VAC solenoid.
• Decoder to be shipped with two approved waterproof wire connectors to be used for connections to two wire path.
• Decoders to be shipped 16 per container with identification tags #1-#16 and MV/PS.
• Decoders are purchased separate from Controller.
