Primary & Secondary Filters

Irrigation water contains impurities such as sand, pebbles, silt, and decaying organic materials. While all these elements cannot be completely removed – usage of the correct irrigation filter can ensure that water becomes clean enough for our irrigation needs. The correct filter is a critical component that can protect components, extend life, lower maintenance, and reduce wear and tear in order to ensure optimum performance of your irrigation system.

Find the right product

All

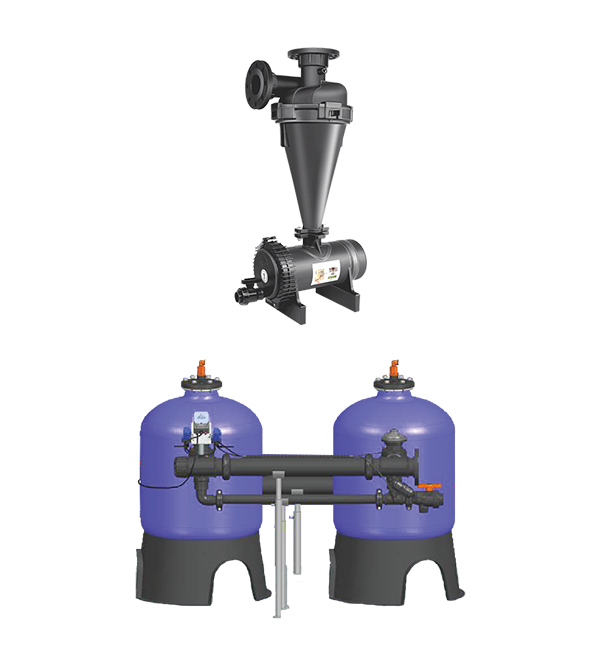

Primary Filtration

Primary Filtration

Secondary Filtration

Secondary Filtration

Primary Filtration

AquaDisc- HF Automatic Disc Filters

Connection Size: 6”, 8”, 10”, 12”

Range of Flow Rate: 120-600 m2/Hr

Filtration Surface Area: 6480-32400 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Cyclone Separator

Connection Size: 3" & 4"

Flow Rate: 90 m3/Hr

Max. working Pressure: 10 Bar

ENQUIRE READ MORE

Hydrocyclone Filter (HT-144 & 145)

Connection Size: 2" & 2 ½”

Range of Flow Rate: 25-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Machclean Manual Sand Media Filter

Connection Size: 2", 2 ½”,3"

Range of Flow Rate: 20-52 m2/hr

Pressure Rating: 4 Kg/cm2

ENQUIRE READ MORE

Hydrocyclone (HT-146)

Connection Size: 3" Male Thread

Range of Flow Rate: 35-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Hydrocyclone with Auto Flush Filter Kit

Connection Size: 2", 2 ½” & 3”

Range of Flow Rate: 25-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Machclean Automatic Sand Media Filter

Connection Size: 3" ,4" ,6” & 8”

Range of Flow Rate: 25 - 100 m3/hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Turbo Automatic Screen Filters

Connection Size: 2", 2 ½” ,3" ,4"

Range of Flow Rate: 25-80 m3/Hr

Filtration Surface Area: 800-2540 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Semi Automatic Screen Filter

Connection Size: 2", 2 ½”,3"

Range of Flow Rate: 18-42 m3/Hr

Filtration Surface Area: 500-817 cm2

Filtration Degree: 120-150 Mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Semi Automatic Disc Filter

Connection Size: 2", 3" & 2 ½”

Range of Flow Rate: 25-176 m3/Hr

Filtration Surface Area: 1080-1590 cm2

Filtration Degree: 80/120/150 Microns

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Aquadisc Fully Automatic Disc Filter

Connection Size: 2”,3",4" & 6”

Range of Flow Rate: 25-210 m3/Hr

Filtration Surface Area: 1620-9720 cm2

Filtration Degree: 80/120/150 Mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Turbo- (H) Automatic Screen Filters

Connection Size: 4”

Range of Flow Rate: 80 m3/Hr

Filtration Surface Area: 2540 cm2

Filtration Degree: 200/130/100 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

AquaDisc- HF Automatic Disc Filters

Connection Size: 6”, 8”, 10”, 12”

Range of Flow Rate: 120-600 m2/Hr

Filtration Surface Area: 6480-32400 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Cyclone Separator

Connection Size: 3" & 4"

Flow Rate: 90 m3/Hr

Max. working Pressure: 10 Bar

ENQUIRE READ MORE

Hydrocyclone Filter (HT-144 & 145)

Connection Size: 2" & 2 ½”

Range of Flow Rate: 25-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Machclean Manual Sand Media Filter

Connection Size: 2", 2 ½”,3"

Range of Flow Rate: 20-52 m2/hr

Pressure Rating: 4 Kg/cm2

ENQUIRE READ MORE

Hydrocyclone (HT-146)

Connection Size: 3" Male Thread

Range of Flow Rate: 35-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Hydrocyclone with Auto Flush Filter Kit

Connection Size: 2", 2 ½” & 3”

Range of Flow Rate: 25-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Machclean Automatic Sand Media Filter

Connection Size: 3" ,4" ,6” & 8”

Range of Flow Rate: 25 - 100 m3/hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Turbo Automatic Screen Filters

Connection Size: 2", 2 ½” ,3" ,4"

Range of Flow Rate: 25-80 m3/Hr

Filtration Surface Area: 800-2540 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Semi Automatic Screen Filter

Connection Size: 2", 2 ½”,3"

Range of Flow Rate: 18-42 m3/Hr

Filtration Surface Area: 500-817 cm2

Filtration Degree: 120-150 Mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Semi Automatic Disc Filter

Connection Size: 2", 3" & 2 ½”

Range of Flow Rate: 25-176 m3/Hr

Filtration Surface Area: 1080-1590 cm2

Filtration Degree: 80/120/150 Microns

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Aquadisc Fully Automatic Disc Filter

Connection Size: 2”,3",4" & 6”

Range of Flow Rate: 25-210 m3/Hr

Filtration Surface Area: 1620-9720 cm2

Filtration Degree: 80/120/150 Mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Turbo- (H) Automatic Screen Filters

Connection Size: 4”

Range of Flow Rate: 80 m3/Hr

Filtration Surface Area: 2540 cm2

Filtration Degree: 200/130/100 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Secondary Filtration

Y-Type Screen Filter (HT-121Y & 122Y)

Connection Size: ¾”, 1” Male Thread

Range of Flow Rate: 4-8m3/Hr

Filtration Surface Area: 120 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-123YF & 123YM)

Connection Size: 1 ¼” Female Thread & 1 ½” Male Thread

Range of Flow Rate: 12-16 m3/Hr

Filtration Surface Area: 295 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-124YS & 124Y)

Connection Size: 2” Male Thread

Range of Flow Rate: 15-27 m3/Hr

Filtration Surface Area: 295-480 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-521Y, 522Y, 523YS, 523Y)

Connection Size: ¾”, 1", 1 ¼”,1 ½” & 2”

Range of Flow Rate:  2-27 m3/Hr

Filtration Surface Area: 150-480 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-131Y & 132Y)

Connection Size: ¾”-1” Male Thread

Range of Flow Rate: 3-8 m3/Hr

Filtration Surface Area: 147.5 cm2

Filtration Degree: 120 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-133YF, 133YM)

Connection Size: 1 ½” Male Thread

Range of Flow Rate: 12-16 m3/Hr

Filtration Surface Area: 409 cm2

Filtration Degree: 120 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-134YS, 134Y)

Connection Size: 2" Male Thread

Range of Flow Rate: 18-22 m3/Hr

Filtration Surface Area: 409 cm2

Filtration Degree: 120 Mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT- 533YS & 533Y)

Connection Size: ¾” ,1",1 ½”, 2"

Range of Flow Rate: 3-25m3/Hr

Filtration Surface Area: 147.5-400 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

Screen Filter-PRY

Connection Size: ¾” Male Thread

Range of Flow Rate: 0.25 - 1.5 m3/Hr

Filtration Surface Area: 80 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

HT-125T(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 27-35 m3/Hr

Filtration Surface Area: 500 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm²

ENQUIRE READ MORE

T-Type Screen Filters HT-524(T, TL), 525(T, TL), 526(T, TL)

Connection Size: 2", 2 ½” ,3"

Range of Flow Rate: 20-51 m3/Hr

Filtration Surface Area: 500-1000 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

T-Type Disc Filters HT-534(T, TL), 535(T, TL), 536(T, TL)

Connection Size: 2", 2 ½” ,3"

Range of Flow Rate: 18-52m3/Hr

Filtration Surface Area: 878-1690 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

HT-124T(HC)

Connection Size: 2” MALE

Range of Flow Rate: 20 - 27 m3/Hr

Filtration Surface Area: 500 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-125TL(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-124TL(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 25-32 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-126T(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-126TL(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 45 -51m3/Hr

Filtration Surface Area: 1000 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-135T(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 25-35 m3/Hr

Filtration Surface Area: 878 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-134TS(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 18-27 m3/Hr

Filtration Surface Area: 878 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-135TL(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-134T(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 25-35 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-136TS(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT/-136T(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 45-52 m3/Hr

Filtration Surface Area: 1690 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

.

ENQUIRE READ MORE

Double Body Disc Filters 3 Inche

Connection Size: 3” Male Thread

Range of Flow Rate: 45-60 m3/Hr

Filtration Surface Area: 1048 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Disc Filters 4 Inch

Connection Size: 4” Male Thread

Range of Flow Rate: 60-80 m3/Hr

Filtration Surface Area: 2386 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Screen Filters 3 Inche

Connection Size: 3” Male Thread

Range of Flow Rate: 45-60 m3/Hr

Filtration Surface Area: 1048 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Screen Filters 4 Inch

Connection Size: 4” Male Thread

Range of Flow Rate: 60 – 100 m3/Hr

Filtration Surface Area: 2386 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Semi Automatic Screen Filter (Double Body)

Connection Size: 3"& 4"

Range of Flow Rate: 50-100 m3/Hr

Filtration Surface Area: 1662-3324 cm2

Filtration Degree: 100/130/200 Microns

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Double Body Manual Filter

Connection Size: 2", 3" & 2 ½”

Range of Flow Rate: 25-176 m3/Hr

Filtration Surface Area: 1080-1590 cm2

Filtration Degree: 80/120/150 Microns

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-121Y & 122Y)

Connection Size: ¾”, 1” Male Thread

Range of Flow Rate: 4-8m3/Hr

Filtration Surface Area: 120 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-123YF & 123YM)

Connection Size: 1 ¼” Female Thread & 1 ½” Male Thread

Range of Flow Rate: 12-16 m3/Hr

Filtration Surface Area: 295 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-124YS & 124Y)

Connection Size: 2” Male Thread

Range of Flow Rate: 15-27 m3/Hr

Filtration Surface Area: 295-480 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-521Y, 522Y, 523YS, 523Y)

Connection Size: ¾”, 1", 1 ¼”,1 ½” & 2”

Range of Flow Rate:  2-27 m3/Hr

Filtration Surface Area: 150-480 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-131Y & 132Y)

Connection Size: ¾”-1” Male Thread

Range of Flow Rate: 3-8 m3/Hr

Filtration Surface Area: 147.5 cm2

Filtration Degree: 120 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-133YF, 133YM)

Connection Size: 1 ½” Male Thread

Range of Flow Rate: 12-16 m3/Hr

Filtration Surface Area: 409 cm2

Filtration Degree: 120 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-134YS, 134Y)

Connection Size: 2" Male Thread

Range of Flow Rate: 18-22 m3/Hr

Filtration Surface Area: 409 cm2

Filtration Degree: 120 Mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT- 533YS & 533Y)

Connection Size: ¾” ,1",1 ½”, 2"

Range of Flow Rate: 3-25m3/Hr

Filtration Surface Area: 147.5-400 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

Screen Filter-PRY

Connection Size: ¾” Male Thread

Range of Flow Rate: 0.25 - 1.5 m3/Hr

Filtration Surface Area: 80 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

HT-125T(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 27-35 m3/Hr

Filtration Surface Area: 500 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm²

ENQUIRE READ MORE

T-Type Screen Filters HT-524(T, TL), 525(T, TL), 526(T, TL)

Connection Size: 2", 2 ½” ,3"

Range of Flow Rate: 20-51 m3/Hr

Filtration Surface Area: 500-1000 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

T-Type Disc Filters HT-534(T, TL), 535(T, TL), 536(T, TL)

Connection Size: 2", 2 ½” ,3"

Range of Flow Rate: 18-52m3/Hr

Filtration Surface Area: 878-1690 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

HT-124T(HC)

Connection Size: 2” MALE

Range of Flow Rate: 20 - 27 m3/Hr

Filtration Surface Area: 500 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-125TL(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-124TL(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 25-32 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-126T(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-126TL(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 45 -51m3/Hr

Filtration Surface Area: 1000 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-135T(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 25-35 m3/Hr

Filtration Surface Area: 878 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-134TS(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 18-27 m3/Hr

Filtration Surface Area: 878 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-135TL(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-134T(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 25-35 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-136TS(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT/-136T(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 45-52 m3/Hr

Filtration Surface Area: 1690 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

.

ENQUIRE READ MORE

Double Body Disc Filters 3 Inche

Connection Size: 3” Male Thread

Range of Flow Rate: 45-60 m3/Hr

Filtration Surface Area: 1048 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Disc Filters 4 Inch

Connection Size: 4” Male Thread

Range of Flow Rate: 60-80 m3/Hr

Filtration Surface Area: 2386 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Screen Filters 3 Inche

Connection Size: 3” Male Thread

Range of Flow Rate: 45-60 m3/Hr

Filtration Surface Area: 1048 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Screen Filters 4 Inch

Connection Size: 4” Male Thread

Range of Flow Rate: 60 – 100 m3/Hr

Filtration Surface Area: 2386 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Semi Automatic Screen Filter (Double Body)

Connection Size: 3"& 4"

Range of Flow Rate: 50-100 m3/Hr

Filtration Surface Area: 1662-3324 cm2

Filtration Degree: 100/130/200 Microns

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Double Body Manual Filter

Connection Size: 2", 3" & 2 ½”

Range of Flow Rate: 25-176 m3/Hr

Filtration Surface Area: 1080-1590 cm2

Filtration Degree: 80/120/150 Microns

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Primary Filtration

AquaDisc- HF Automatic Disc Filters

Connection Size: 6”, 8”, 10”, 12”

Range of Flow Rate: 120-600 m2/Hr

Filtration Surface Area: 6480-32400 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Cyclone Separator

Connection Size: 3" & 4"

Flow Rate: 90 m3/Hr

Max. working Pressure: 10 Bar

ENQUIRE READ MORE

Hydrocyclone Filter (HT-144 & 145)

Connection Size: 2" & 2 ½”

Range of Flow Rate: 25-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Machclean Manual Sand Media Filter

Connection Size: 2", 2 ½”,3"

Range of Flow Rate: 20-52 m2/hr

Pressure Rating: 4 Kg/cm2

ENQUIRE READ MORE

Hydrocyclone (HT-146)

Connection Size: 3" Male Thread

Range of Flow Rate: 35-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Hydrocyclone with Auto Flush Filter Kit

Connection Size: 2", 2 ½” & 3”

Range of Flow Rate: 25-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Machclean Automatic Sand Media Filter

Connection Size: 3" ,4" ,6” & 8”

Range of Flow Rate: 25 - 100 m3/hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Turbo Automatic Screen Filters

Connection Size: 2", 2 ½” ,3" ,4"

Range of Flow Rate: 25-80 m3/Hr

Filtration Surface Area: 800-2540 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Semi Automatic Screen Filter

Connection Size: 2", 2 ½”,3"

Range of Flow Rate: 18-42 m3/Hr

Filtration Surface Area: 500-817 cm2

Filtration Degree: 120-150 Mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Semi Automatic Disc Filter

Connection Size: 2", 3" & 2 ½”

Range of Flow Rate: 25-176 m3/Hr

Filtration Surface Area: 1080-1590 cm2

Filtration Degree: 80/120/150 Microns

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Aquadisc Fully Automatic Disc Filter

Connection Size: 2”,3",4" & 6”

Range of Flow Rate: 25-210 m3/Hr

Filtration Surface Area: 1620-9720 cm2

Filtration Degree: 80/120/150 Mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Turbo- (H) Automatic Screen Filters

Connection Size: 4”

Range of Flow Rate: 80 m3/Hr

Filtration Surface Area: 2540 cm2

Filtration Degree: 200/130/100 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Secondary Filtration

Y-Type Screen Filter (HT-121Y & 122Y)

Connection Size: ¾”, 1” Male Thread

Range of Flow Rate: 4-8m3/Hr

Filtration Surface Area: 120 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-123YF & 123YM)

Connection Size: 1 ¼” Female Thread & 1 ½” Male Thread

Range of Flow Rate: 12-16 m3/Hr

Filtration Surface Area: 295 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-124YS & 124Y)

Connection Size: 2” Male Thread

Range of Flow Rate: 15-27 m3/Hr

Filtration Surface Area: 295-480 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-521Y, 522Y, 523YS, 523Y)

Connection Size: ¾”, 1", 1 ¼”,1 ½” & 2”

Range of Flow Rate:  2-27 m3/Hr

Filtration Surface Area: 150-480 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-131Y & 132Y)

Connection Size: ¾”-1” Male Thread

Range of Flow Rate: 3-8 m3/Hr

Filtration Surface Area: 147.5 cm2

Filtration Degree: 120 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-133YF, 133YM)

Connection Size: 1 ½” Male Thread

Range of Flow Rate: 12-16 m3/Hr

Filtration Surface Area: 409 cm2

Filtration Degree: 120 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-134YS, 134Y)

Connection Size: 2" Male Thread

Range of Flow Rate: 18-22 m3/Hr

Filtration Surface Area: 409 cm2

Filtration Degree: 120 Mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT- 533YS & 533Y)

Connection Size: ¾” ,1",1 ½”, 2"

Range of Flow Rate: 3-25m3/Hr

Filtration Surface Area: 147.5-400 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

Screen Filter-PRY

Connection Size: ¾” Male Thread

Range of Flow Rate: 0.25 - 1.5 m3/Hr

Filtration Surface Area: 80 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

HT-125T(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 27-35 m3/Hr

Filtration Surface Area: 500 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm²

ENQUIRE READ MORE

T-Type Screen Filters HT-524(T, TL), 525(T, TL), 526(T, TL)

Connection Size: 2", 2 ½” ,3"

Range of Flow Rate: 20-51 m3/Hr

Filtration Surface Area: 500-1000 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

T-Type Disc Filters HT-534(T, TL), 535(T, TL), 536(T, TL)

Connection Size: 2", 2 ½” ,3"

Range of Flow Rate: 18-52m3/Hr

Filtration Surface Area: 878-1690 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

HT-124T(HC)

Connection Size: 2” MALE

Range of Flow Rate: 20 - 27 m3/Hr

Filtration Surface Area: 500 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-125TL(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-124TL(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 25-32 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-126T(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-126TL(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 45 -51m3/Hr

Filtration Surface Area: 1000 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-135T(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 25-35 m3/Hr

Filtration Surface Area: 878 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-134TS(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 18-27 m3/Hr

Filtration Surface Area: 878 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-135TL(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-134T(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 25-35 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-136TS(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT/-136T(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 45-52 m3/Hr

Filtration Surface Area: 1690 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

.

ENQUIRE READ MORE

Double Body Disc Filters 3 Inche

Connection Size: 3” Male Thread

Range of Flow Rate: 45-60 m3/Hr

Filtration Surface Area: 1048 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Disc Filters 4 Inch

Connection Size: 4” Male Thread

Range of Flow Rate: 60-80 m3/Hr

Filtration Surface Area: 2386 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Screen Filters 3 Inche

Connection Size: 3” Male Thread

Range of Flow Rate: 45-60 m3/Hr

Filtration Surface Area: 1048 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Screen Filters 4 Inch

Connection Size: 4” Male Thread

Range of Flow Rate: 60 – 100 m3/Hr

Filtration Surface Area: 2386 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Semi Automatic Screen Filter (Double Body)

Connection Size: 3"& 4"

Range of Flow Rate: 50-100 m3/Hr

Filtration Surface Area: 1662-3324 cm2

Filtration Degree: 100/130/200 Microns

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Double Body Manual Filter

Connection Size: 2", 3" & 2 ½”

Range of Flow Rate: 25-176 m3/Hr

Filtration Surface Area: 1080-1590 cm2

Filtration Degree: 80/120/150 Microns

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Primary Filtration

AquaDisc- HF Automatic Disc Filters

Connection Size: 6”, 8”, 10”, 12”

Range of Flow Rate: 120-600 m2/Hr

Filtration Surface Area: 6480-32400 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Cyclone Separator

Connection Size: 3" & 4"

Flow Rate: 90 m3/Hr

Max. working Pressure: 10 Bar

ENQUIRE READ MORE

Hydrocyclone Filter (HT-144 & 145)

Connection Size: 2" & 2 ½”

Range of Flow Rate: 25-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Machclean Manual Sand Media Filter

Connection Size: 2", 2 ½”,3"

Range of Flow Rate: 20-52 m2/hr

Pressure Rating: 4 Kg/cm2

ENQUIRE READ MORE

Hydrocyclone (HT-146)

Connection Size: 3" Male Thread

Range of Flow Rate: 35-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Hydrocyclone with Auto Flush Filter Kit

Connection Size: 2", 2 ½” & 3”

Range of Flow Rate: 25-50 m3/Hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Machclean Automatic Sand Media Filter

Connection Size: 3" ,4" ,6” & 8”

Range of Flow Rate: 25 - 100 m3/hr

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Turbo Automatic Screen Filters

Connection Size: 2", 2 ½” ,3" ,4"

Range of Flow Rate: 25-80 m3/Hr

Filtration Surface Area: 800-2540 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Semi Automatic Screen Filter

Connection Size: 2", 2 ½”,3"

Range of Flow Rate: 18-42 m3/Hr

Filtration Surface Area: 500-817 cm2

Filtration Degree: 120-150 Mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

Semi Automatic Disc Filter

Connection Size: 2", 3" & 2 ½”

Range of Flow Rate: 25-176 m3/Hr

Filtration Surface Area: 1080-1590 cm2

Filtration Degree: 80/120/150 Microns

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Aquadisc Fully Automatic Disc Filter

Connection Size: 2”,3",4" & 6”

Range of Flow Rate: 25-210 m3/Hr

Filtration Surface Area: 1620-9720 cm2

Filtration Degree: 80/120/150 Mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Turbo- (H) Automatic Screen Filters

Connection Size: 4”

Range of Flow Rate: 80 m3/Hr

Filtration Surface Area: 2540 cm2

Filtration Degree: 200/130/100 mesh

Pressure Rating: 10 kg/cm2

ENQUIRE READ MORE

Secondary Filtration

Y-Type Screen Filter (HT-121Y & 122Y)

Connection Size: ¾”, 1” Male Thread

Range of Flow Rate: 4-8m3/Hr

Filtration Surface Area: 120 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-123YF & 123YM)

Connection Size: 1 ¼” Female Thread & 1 ½” Male Thread

Range of Flow Rate: 12-16 m3/Hr

Filtration Surface Area: 295 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-124YS & 124Y)

Connection Size: 2” Male Thread

Range of Flow Rate: 15-27 m3/Hr

Filtration Surface Area: 295-480 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Screen Filter (HT-521Y, 522Y, 523YS, 523Y)

Connection Size: ¾”, 1", 1 ¼”,1 ½” & 2”

Range of Flow Rate:  2-27 m3/Hr

Filtration Surface Area: 150-480 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-131Y & 132Y)

Connection Size: ¾”-1” Male Thread

Range of Flow Rate: 3-8 m3/Hr

Filtration Surface Area: 147.5 cm2

Filtration Degree: 120 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-133YF, 133YM)

Connection Size: 1 ½” Male Thread

Range of Flow Rate: 12-16 m3/Hr

Filtration Surface Area: 409 cm2

Filtration Degree: 120 mesh

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT-134YS, 134Y)

Connection Size: 2" Male Thread

Range of Flow Rate: 18-22 m3/Hr

Filtration Surface Area: 409 cm2

Filtration Degree: 120 Mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Y-Type Disc Filter (HT- 533YS & 533Y)

Connection Size: ¾” ,1",1 ½”, 2"

Range of Flow Rate: 3-25m3/Hr

Filtration Surface Area: 147.5-400 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

Screen Filter-PRY

Connection Size: ¾” Male Thread

Range of Flow Rate: 0.25 - 1.5 m3/Hr

Filtration Surface Area: 80 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

HT-125T(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 27-35 m3/Hr

Filtration Surface Area: 500 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm²

ENQUIRE READ MORE

T-Type Screen Filters HT-524(T, TL), 525(T, TL), 526(T, TL)

Connection Size: 2", 2 ½” ,3"

Range of Flow Rate: 20-51 m3/Hr

Filtration Surface Area: 500-1000 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

T-Type Disc Filters HT-534(T, TL), 535(T, TL), 536(T, TL)

Connection Size: 2", 2 ½” ,3"

Range of Flow Rate: 18-52m3/Hr

Filtration Surface Area: 878-1690 cm2

Filtration Degree: 120 mesh

Pressure Rating: 4 kg/cm2

ENQUIRE READ MORE

HT-124T(HC)

Connection Size: 2” MALE

Range of Flow Rate: 20 - 27 m3/Hr

Filtration Surface Area: 500 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-125TL(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-124TL(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 25-32 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-126T(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 764 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-126TL(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 45 -51m3/Hr

Filtration Surface Area: 1000 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-135T(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 25-35 m3/Hr

Filtration Surface Area: 878 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-134TS(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 18-27 m3/Hr

Filtration Surface Area: 878 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-135TL(HC)

Connection Size: 2 ½” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-134T(HC)

Connection Size: 2” Male Thread

Range of Flow Rate: 25-35 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT-136TS(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 35-45 m3/Hr

Filtration Surface Area: 1193 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

ENQUIRE READ MORE

HT/-136T(HC)

Connection Size: 3” Male Thread

Range of Flow Rate: 45-52 m3/Hr

Filtration Surface Area: 1690 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 6 Kg/cm2

.

ENQUIRE READ MORE

Double Body Disc Filters 3 Inche

Connection Size: 3” Male Thread

Range of Flow Rate: 45-60 m3/Hr

Filtration Surface Area: 1048 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Disc Filters 4 Inch

Connection Size: 4” Male Thread

Range of Flow Rate: 60-80 m3/Hr

Filtration Surface Area: 2386 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Screen Filters 3 Inche

Connection Size: 3” Male Thread

Range of Flow Rate: 45-60 m3/Hr

Filtration Surface Area: 1048 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Double Body Screen Filters 4 Inch

Connection Size: 4” Male Thread

Range of Flow Rate: 60 – 100 m3/Hr

Filtration Surface Area: 2386 cm2

Filtration Degree: 80/120/150 mesh

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE

Semi Automatic Screen Filter (Double Body)

Connection Size: 3"& 4"

Range of Flow Rate: 50-100 m3/Hr

Filtration Surface Area: 1662-3324 cm2

Filtration Degree: 100/130/200 Microns

Pressure Rating: 8 kg/cm2

ENQUIRE READ MORE

Double Body Manual Filter

Connection Size: 2", 3" & 2 ½”

Range of Flow Rate: 25-176 m3/Hr

Filtration Surface Area: 1080-1590 cm2

Filtration Degree: 80/120/150 Microns

Pressure Rating: 8 Kg/cm2

ENQUIRE READ MORE
X

AUTOMAT is one of the world’s largest manufacturers of micro-irrigation components with a portfolio of more than 400+ products across 8 different categories with a global presence in more than 110 countries.

Our Products

Links

Download Mobile App

Get in touch

Plot no. 18-19, Dilshad Garden, G.T. Road, New Delhi 110095.

+91-9650607154

+91-9650607154

marketing@automatworld.com
contactus@automatworld.com

Copyright © 2025 AUTOMAT Industries Private Limited. All rights reserved.

Privacy Policy Terms & Conditions Site Map
