Impact Sprinklers

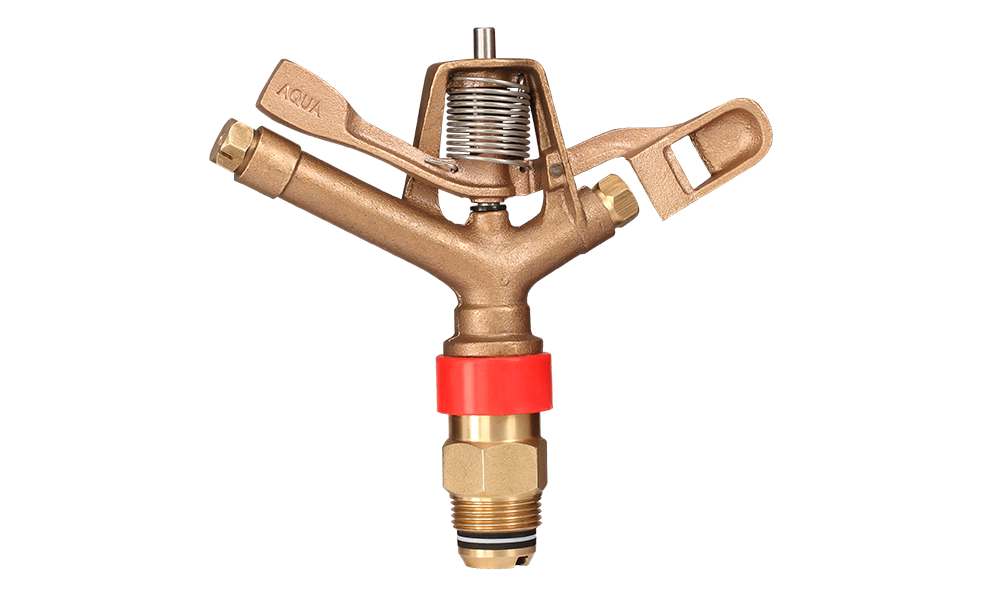

HT-30

Body and arm made of bronze for durability and bottom dust cap for avoiding sand deposition on bottom bearing.

Crops:

All crops irrigations compatible by overhead irrigation.
Advisable for the fields of Cumin, Wheat, Mustard & Garlic.

DOWNLOAD BROCHURE

Features

Durable Bronze body and arm.

Heavy duty Brass Nut, Tube and nozzles.

Bottom Dust cap for avoiding sand deposition on bottom bearing.

PU thurst pad for impact wear resistance.

Stainless Steel Pivot Pin and springs.

Technical Specification

Connection size - 1'' BSP/NPT male threaded and 1'' Female threaded.

Recommended Pressure 2.5 - 5.0 kg/cm² or 35 - 70Psi.

Recommended spacing up to 21 mtr for higher distribution uniformity.

Trajectory Angle: 27°.

Radius coverage area is 21 mtr.

Nozzle size : 7.94*5.5mm Pressure : 4.0 kg/cm².
