Turf Irrigation

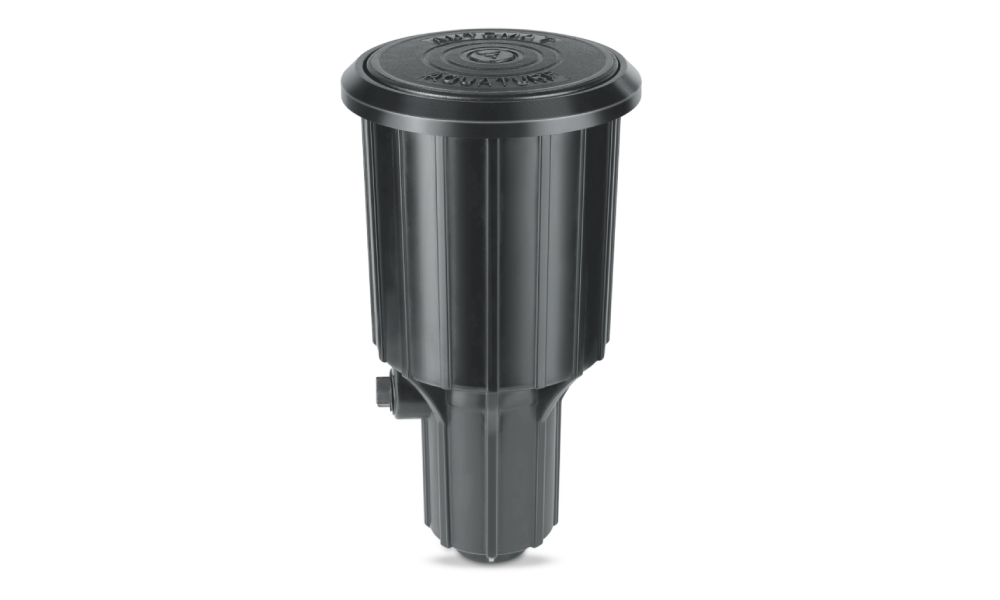

Aquaturf Pop-up Impact Sprinkler
Pop up sprinkler for underground installation in landscaping, public parks and public lawn irrigation with interchangeable, bayonet colour coded nozzles. Its heavy duty plastic case with reinforced ribbed design is great for excellent gripping. Adjustable to full-circle or part-circle with diffuser screw for fine droplets and throw control.
Features
- Interchangeable, bayonet colour coded nozzles.
- Heavy-duty plastic case with reinforced ribbed design for excellent gripping
- Adjustable to full-circle or part circle.
- Diffuser screw for fine droplets & throw control.
- Double-weighted arm for balance and smooth rotation.
- Sand resistant pressure activated wiper seal.
- Excellent distribution uniformity.
- ½” & ¾” female threaded bottom inlet & ½” female threaded side inlet.
- Having provision of bottom inlet filter.
Technical Specification
- Discharge: 456-1192 L/H.
- Diameter: 22.5-25.5 mtr.
- Operating pressure: 2.0-4.0 kg/cm².
- Bottom Inlet connection ½
- Nozzles available in sizes 2.9, 3.2, 3.5 & 4.0 mm.
- Trajectory Angle: 25°.
- Full-circle (360°) or Part-circle (adjustable arc from 15° to 345°).
- Spacing between sprinkler: upto 12m for excellent uniformity.
