Impact Sprinklers

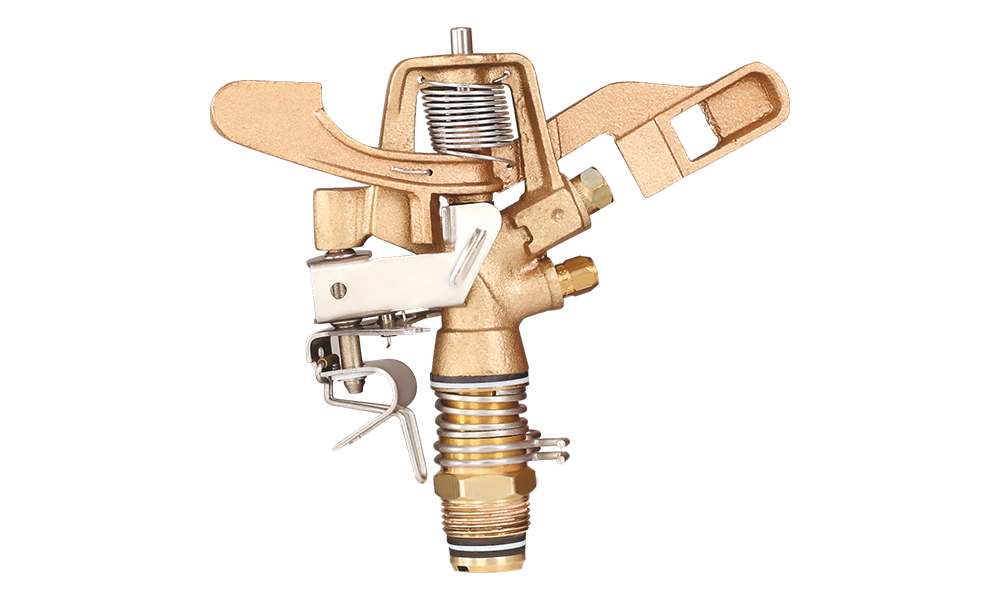

HT-20PC (Part Circle)

Body and arm made of bronze for durability. Primarily used in irrigation by overhead irrigation solid set systems – portable or permanent.

Crops:

All crops irrigation compatible by overhead on solid set portable and permanent systems.
Recommended for watermelon, bajra, maze, wheat, tea and coffee crops.

DOWNLOAD BROCHURE

Features

Durable bronze body and arm.

Heavy duty brass Nut & tube.

For efficient irrigation of field edges.

Bearing & Sealing washers are made of material for extending life.

Diffusor screw to change the water jet from heavy droplet to fine spray (AQ20PC- ASDA).

Special model available for pressure application up to 6.0kg/cm2.

Stainless steel Pivot Pin, deflector plate, diffusor screw, part circle mechanism.

Technical Specification

Connection size - ¾” BSP/NPT male threaded.

Recommended pressure 2.0 – 4.0 kg/cm² or 30 – 55Psi.

Recommended spacing up to 15 mtr for higher distribution uniformity.

Trajectory Angle: 25°.

Radius coverage area is 15 mtr.

Nozzle size: 4.36 x 2.38mm & Pressure: 3.0kg/cm².
