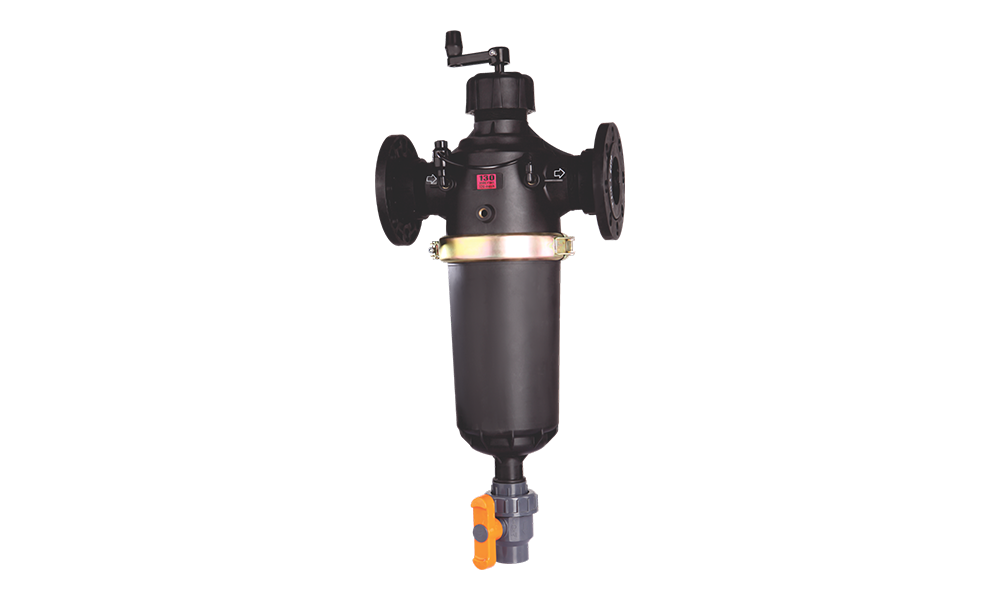

Semi Automatic Screen Filter

Suitable for use as a primary filtration device in small farm holdings. Made from special, chemically bonded polymer for durability. Easy to install and low.

CLEANING INSTRUCTIONS:

• Cleaning the semi-automatic filter must be done while the filter is under pressure.
• Open the drain valve gradually.
• Close the valve gradually.
• Cleaning of the filter must be done when pressure differential across the screen reaches 0.5kg/cm² (7psi) or when the pressure indicator red button pops up.
• Rotate the handle gripper in clockwise direction 4 - 5 times and then rotate in anti -clockwise direction to finish the process. This is to be done online when the system is on.
•  In case the filter is still clogged (pressure indicator button is up). Repeat the above while the downstream valve of the filter is closed.
