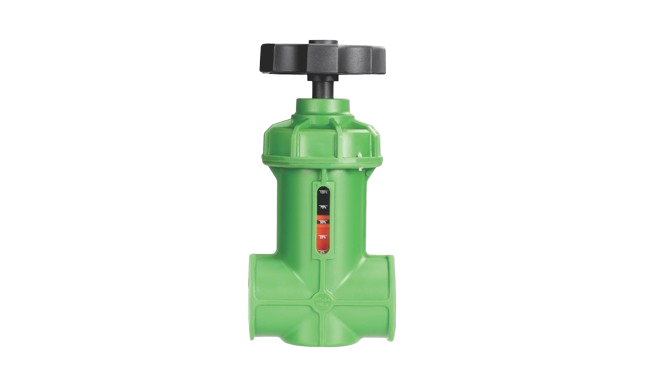

Throttle Valve

Multi-turn, linear motion throttle valve. Straight through flow with minimal head loss, its slow operation prevents water hammer. Float, body inside profile.

DOWNLOAD BROCHURE

Features

Multi turn Linear motion throttle valve.

End connections : Female 2

Operating Pressure: 6 Bar/ 90Psi.

Straight through flow with minimal head loss.

Its slow operation prevent water hammer.

Visual float position indicator to show us % throttle of piping system.

Float, Body inside profile is matched by CNC machining for smooth operation and keeping the leakage under permissible limit during complete shut off.

Maintaining seat leakage permissible limit as per standard ANSI/FCI-70-2-2006 in Class III (0.10%)

Chemical/Corrosion resistant, Color UV stablized.

Steel Rod inserted in full length during injection moulding of Shaft made of Reinforced Nylon, that gives excellent strength without breakage during rough usage.

Dowel pin inserted in the shaft to prevent extra travel of float which do not transfer load on during extra tightening by farmers. This prevents breakage of cap.

During assembly of throttle valve, 2 nos. lock pins inserted to avoid any slippage or loosening of threads of throttle valve cap.
