Impact Sprinklers

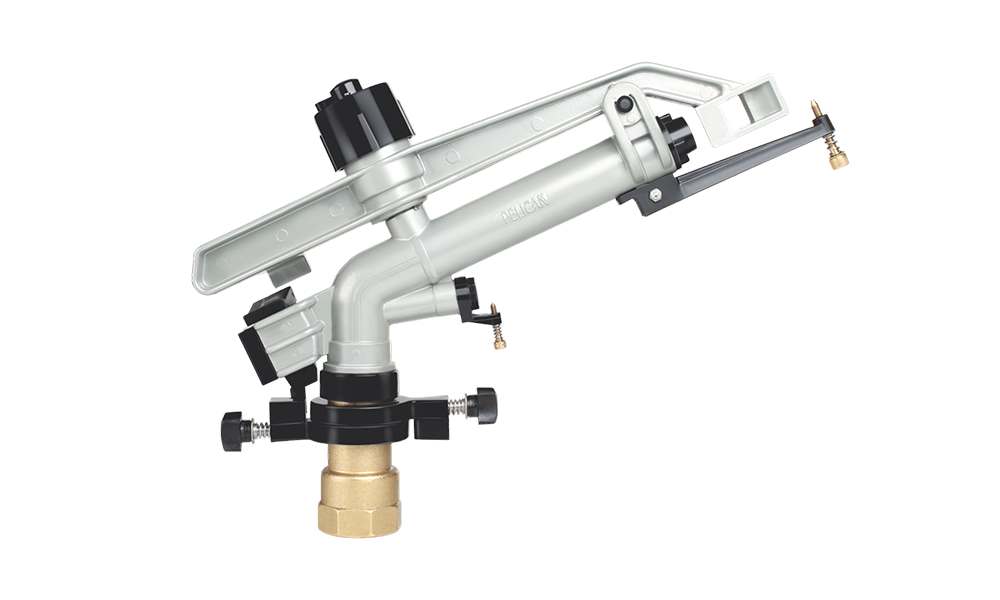

HT-42G (Pelican)

Aluminum die casted body and arm with jet break screw to change the water jet from heavy droplets to fine spray.

Crops:

Suitable for overtree irrigation for bigger crops like sugarcane, oats, maize, tea, coffee, fodder, landscape, etc. and horticulture also for pastures and dust suppression.

DOWNLOAD BROCHURE

Features

Aluminium Pressure die casted Body and arm.

Heavy duty brass nut, tube and nozzles.

Stainless Steel Pivot Pin, springs and part circle mechanism.

Plastic parts made of engineering plastic for durablity.

Available both Full Circle & Part -circle design.

Jet breaker screw to change the water jet from heavy droplets to fine spray.

Technical Specification

Connection size- 1½'' BSP/NPT Female threaded.

Recommended Pressure 2.0 - 5.0 kg/cm² or 30 - 70Psi.

Recommended spacing up to 36 mtr for higher distribution uniformity.

Trajectory Angle: 23°.

Radius Coverage area is 10 mtr.
