Impact Sprinklers

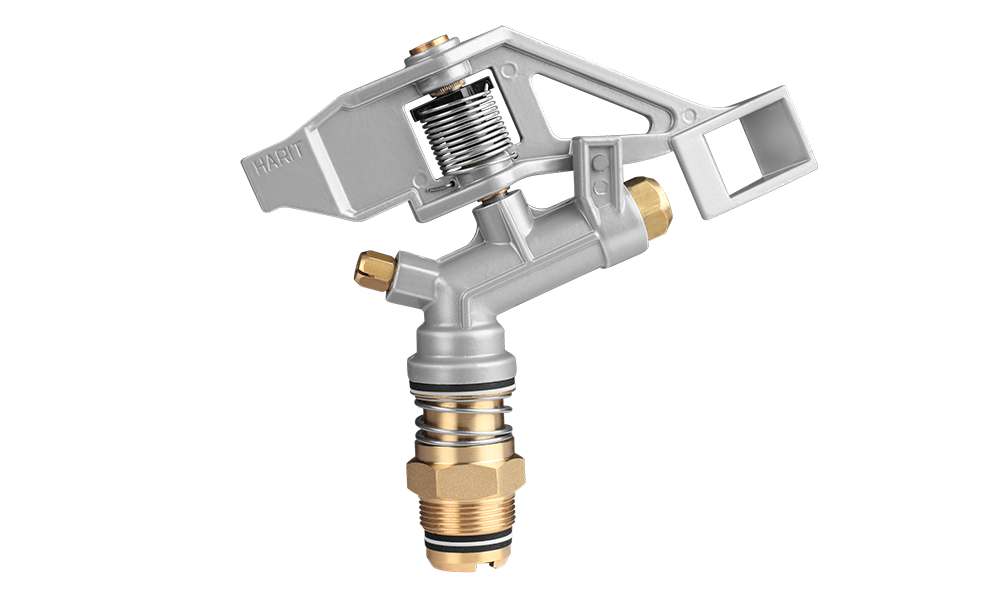

HT-40M
Aluminium pressure die casted body and arm, suitable for over tree irrigation of tea, coffee plantation, fodder crops and horticulture (also for pastures).
Crops:
- Recommended for over tree irrigation of tea, coffee plantation, fodder crops and horticulture.
Features
- Light in weight, robust and reliable design.
- Aluminium Pressure die casted Body and arm.
- Heavy duty Brass Nut, Tube and nozzles.
- Stainless steel pivot pin and springs.
Technical Specification
- Connection size - 1¼'' BSP/NPT male threaded.
- Recommended Pressure 2.5 - 5.0 kg/cm² or 35 - 70Psi.
- Recommended spacing up to 24 mtr for higher distribution uniformity.
- Trajectory Angle: 22°.
- Radius coverage area is 29 mtr.
