Impact Sprinklers

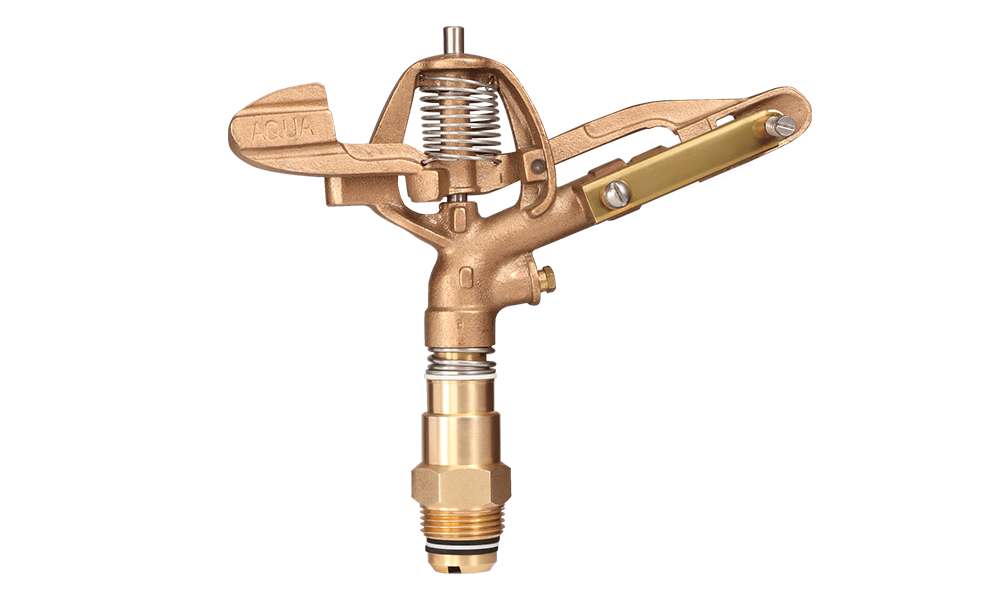

HT-30B (Part Circle)

The body and arm are made of bronze for durability and designed for full field irrigation of field crops.

Crops:

All Cereal grains, Vegetables, and Other Crops compatible with Overhead Irrigation

DOWNLOAD BROCHURE

Features

For Efficient irrigation of field edges.

Durable Bronze body and arm.

Heavy duty Brass Nut, Tube and nozzles.

Stainless Steel Pivot Pin and springs.

PU thrust pad for impact wear resistance.

Technical Specification

Connection size - 1'' BSP/NPT male threaded.

Recommended Pressure 2.5 - 5.0 kg/cm² or 35 - 70Psi.

Recommended spacing up to 21 mtr for higher distribution uniformity.

Trajectory Angle: 23°.

Radius coverage area is 11.5 mtr.

Nozzle size: 6.35*3.17mm Pressure:4.0kg/cm².
