Micro Sprinklers

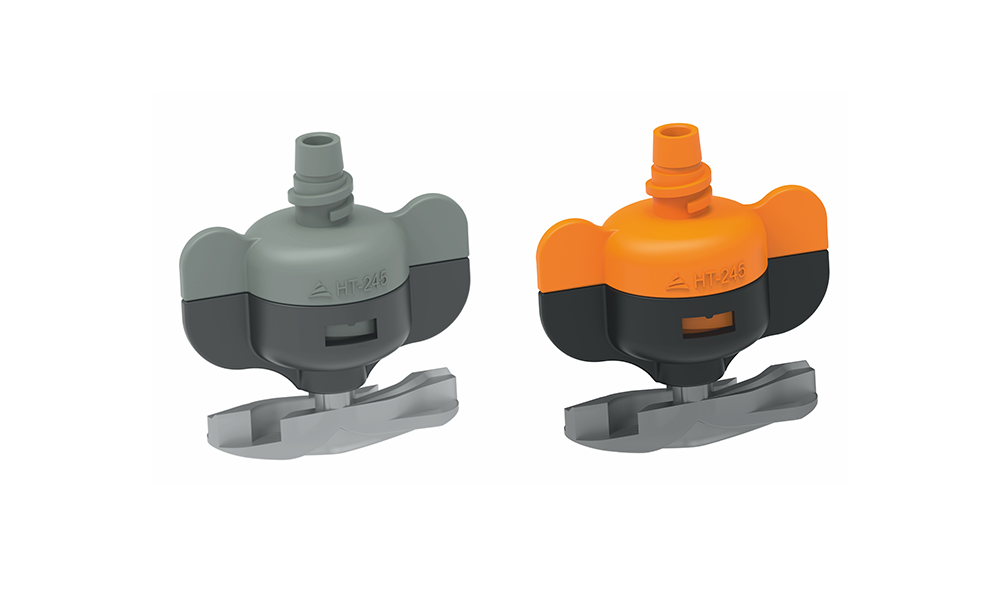

HT-245 (Aquaspin)

An inverted micro sprinkler for excellent water distribution in greenhouses.

Usage:

Overhead Irrigation in Greenhouses, Net-houses and tunnels.

DOWNLOAD BROCHURE

Features

Excellent water distribution, uniformity for high and uniform yield.

Bridge-free design ensures dripping free operation and protects plants.

Made of high quality materials for superior lifespan.

Reliable Leakage Prevention Device (LPD) to prevent water dripping and avoid plant damage.

Interchangeable components can be easily manually disassembled, ideal for quick and simple maintenance.

Bayonet connection for easy installation.

Colour coded nozzles for identification of different flow rates.

Available for both tubes: PE/ PVC.

Technical Specification

Recommended working pressure range: 2.0 - 3.0 bar.

Flow rates: 60 - 200 1/h.

Wetted diameter: 7.5 - 10.0 mtr.

Filtration requirements: Gray nozzles - 130 microns Green & Black nozzles - 200 microns.
