Impact Sprinklers

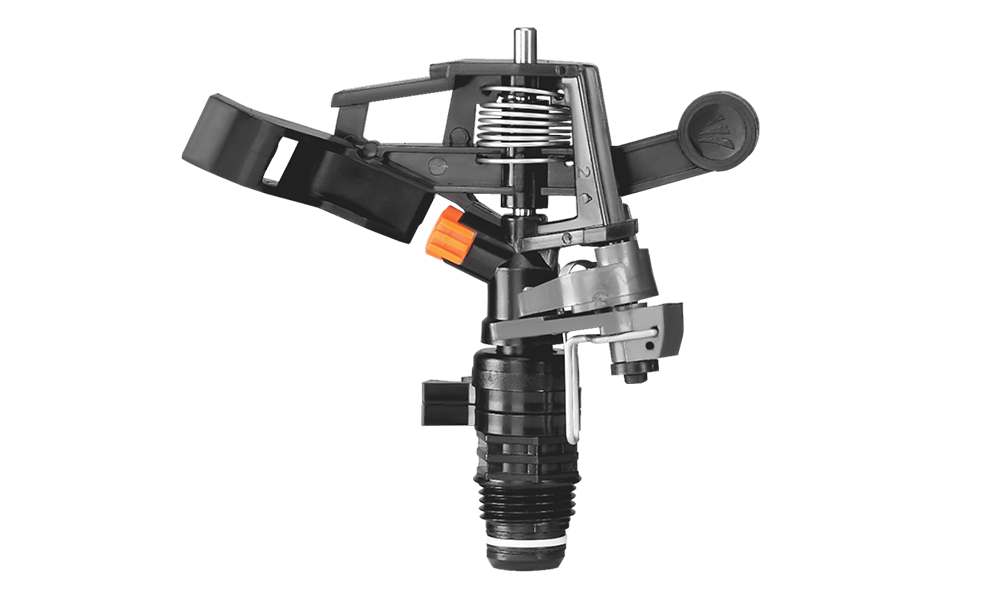

HT-22PC (Part Circle)

Overhead part circle sprinkler with ½” BSPT male threaded connection and 25° trajectory angle.

Crop:

All crops and gardens are irrigated by overhead irrigation.
For irrigation and germination of vegetables, flowers, and potatoes.
For efficient irrigation of field edges.

DOWNLOAD BROCHURE

Features

Colour coded nozzles for easy size identification.

Nozzle Bayonet connection for easy service in field conditions.

Nozzles with integrated stream straightening vane for long range.

Engineering Plastic material for durability and corrosion resistant.

Pivot pin and Springs made of Stainless steel.

Part circle assembly made by special grade plastic material for longevity.

Technical Specification

Connection size - 1/2'' BSP Male threaded.

Recommended Pressure 2.0 - 4.0 kg/cm² or 30 - 55Psi.

Recommended spacing up to 9 m for higher distribution uniformity.

Trajectory Angle: 25°.

Radius coverage area is 13 mtr.
