Impact Sprinklers

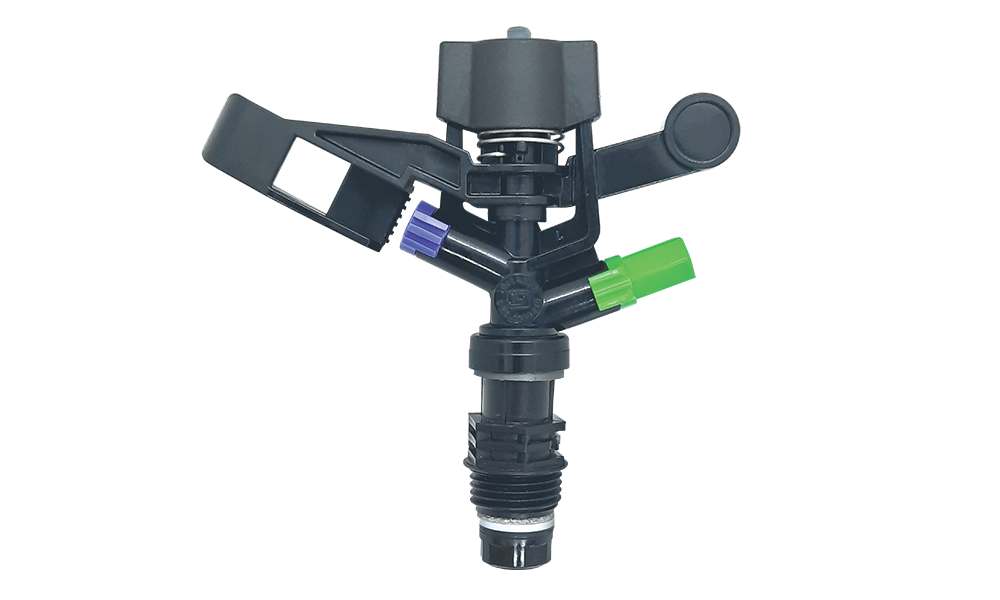

HT-22 XU (Extra Uniformity)

The Unique design of the range nozzle helps in excellent water distribution uniformity which improves the quality & yield of the crops.

Crops:

Recommended for closely spaced field crops, such as potato, leafy vegetables, cotton, oil seeds, pulses, and fodder crops.
For irrigation and germination of vegetables, flowers, and nursery crops.

DOWNLOAD BROCHURE

Features

Specially designed nozzles for Increased coverage and Excellent distribution uniformity.

Operates even at low pressure of 0.7 bar due to special springs & washers.

Bayonet nozzle connection for easy connection and service.

Corrosion-proof plastic pivot pin prevents wear & tear of the sprinkler.

Graphite bottom washer for smooth and consistent rotation.

XU Purple is the main nozzle & green slit nozzle is the spray nozzle.

Technical Specification

Connection size- 1/2'' Male threaded connection.

Recommended Pressure 0.7 - 2.5 bar.

Recommended spacing: upto 10 m.

Trajectory Angle: 24°.

Radius coverage area is 11 mtr.
