Impact Sprinklers

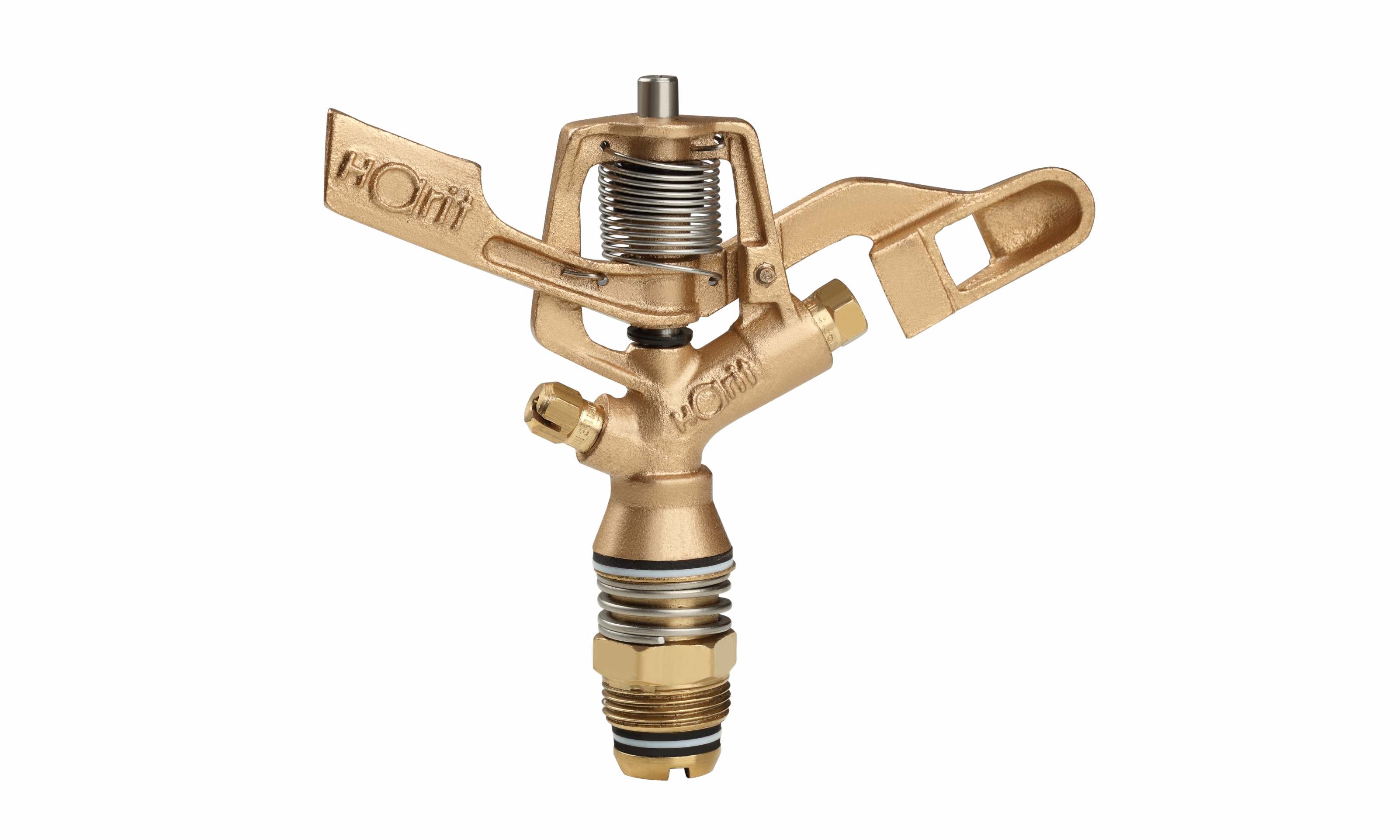

HT-20

Body and arm made of bronze for durability and useful for areas where strong wind is prevalent.

Crops:

Suitable for crops like Watermelon, bajra, maze, wheat, cottonss.
Used for all crops irrigation compatible by overhead irrigation on solid set, permanent set, hard lines, portable lines, wheel lines and mechanically moved system such as centre pivot.

DOWNLOAD BROCHURE

Features

Durable Bronze Body & Arm.

Heavy duty Brass Nut & Tube.

Stainless Steel Pivot Pin and springs.

Bearing & Sealing washes are made of material for extending life.

Technical Specification

Connection size - 3/4'' BSP/NPT male threaded.

Recommended Pressure 1.0 - 3.0 kg/cm².

Recommended spacing up to 15 mtr for higher distribution uniformity.

Trajectory Angle: 27°.

Radius coverage area is 13 mtr.
