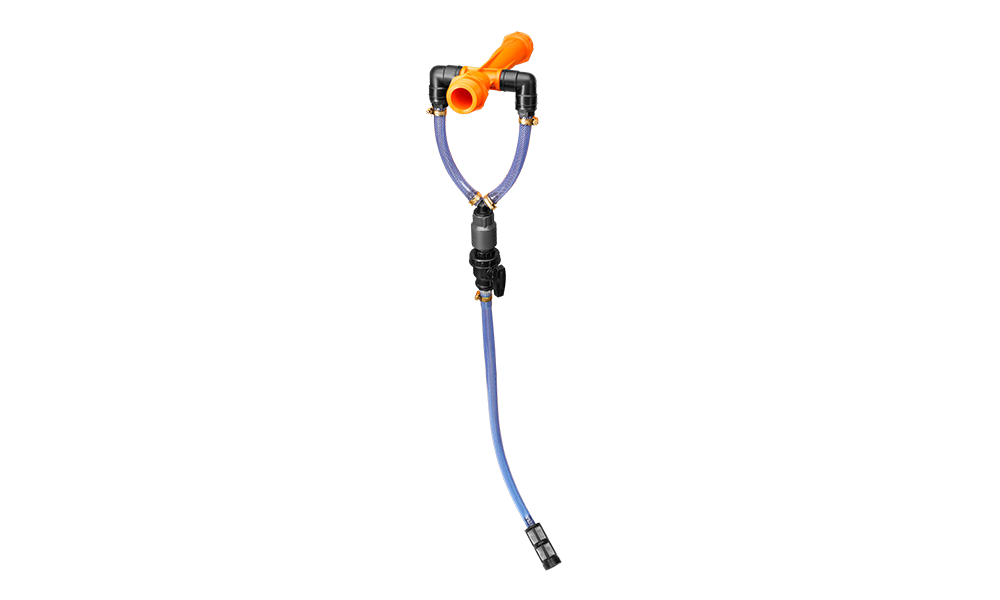

HT-115DS (Super Venturi)

It is used for higher quantity fertilizer application or chemical injection in irrigation system by creating minimal pressure difference on head unit.

APPLICATIONS:

It is used for higher quantity fertilizer application or chemical injection in irrigation system by creating minimum energy loss.
Min. pressure diﬀerential less than 20% enables a chemical or fertilizer to be drawn through the suction port and is dynamically entrained into the irrigation system.
Min. motive ﬂow required to inject higher chemical/fertilizer injection into irrigation system.

DOWNLOAD BROCHURE

Features

Controlled Adjustable suction either from one port or both port as required in field.

Deliver plant nutrients directly into wetted zone.

Can be used large variety of chemical / fertilizers.

Uniform fertilzer Application.

More saving of energy as well as manpower.

Spring loaded external NRV for easy cleaning.

Technical Specification

Inlet/Outlet: 2'' inch male BSP/NPT threaded connections.

Suction Port: 2nos., 1'' Male threaded Suction Port.

Working pressure 1-6 kg/cm².

External NRV: 2nos.: 1” Male x female threaded connection.

Min. Pressure Differential required: 20%.

External NRV cracking pressure: 0.1-0.15kg/cm².

No performance variation by horizontal/vertical installation.
