Irrigation Accessories

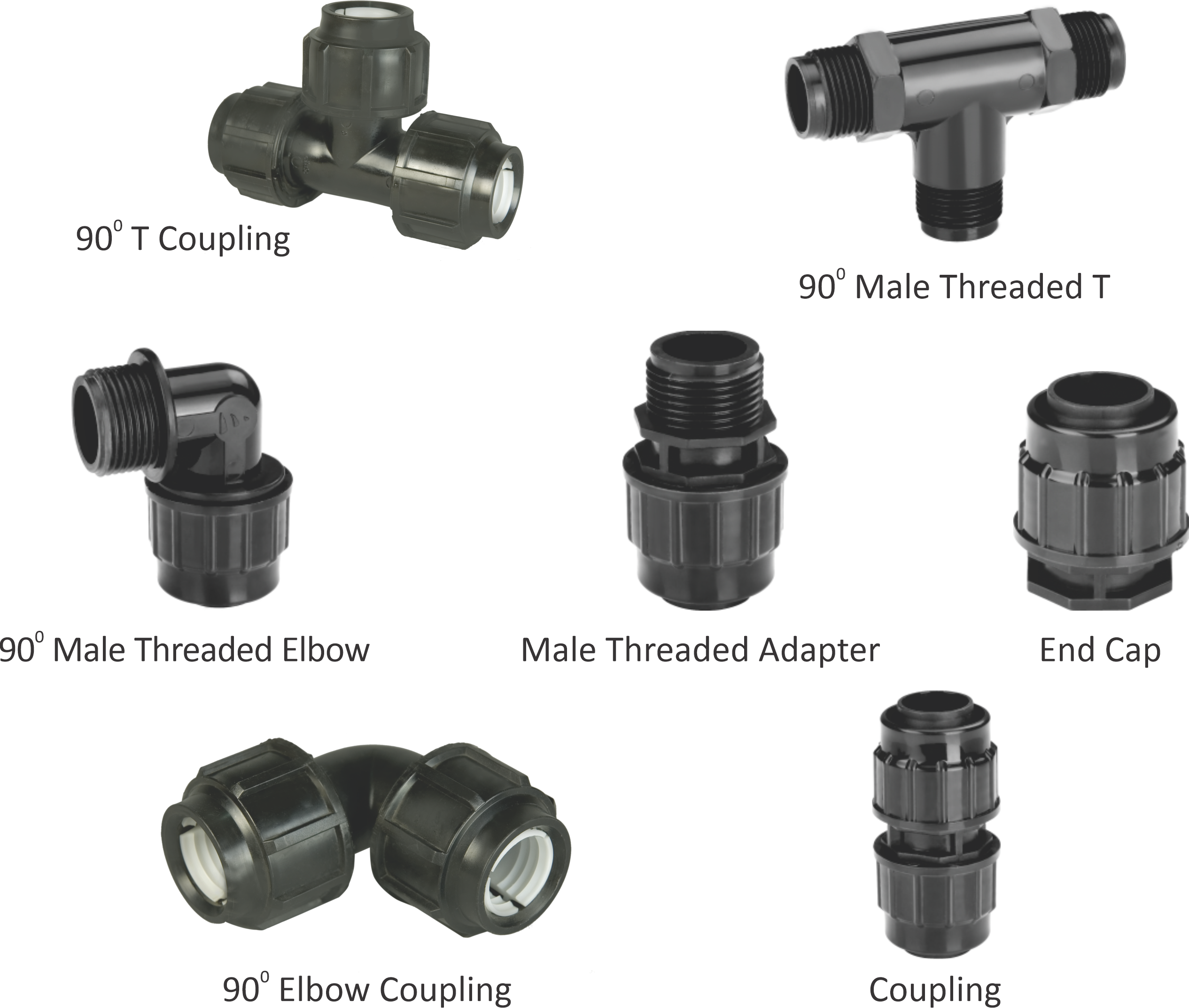

Compression & Push Fit Type Fittings
A type of easily removed compression fitting or quick connect fitting that allows an air (or water) line to be attached, nominally without the use of tools.
Application:
- Simplest & fastest way to Joints Pipes.
- No Fusion Welding.
- No Electricity required.
Features
- Threads: Male threaded BSP.
- Range: 25mm OD, 32mm OD.
- Body, Cap, Inner Bush made of Polypropylene with master batch & UV stabilized.
- Gripper made in Acetal (Delrin).
- O-ring made of Nitrile.
- High impact resistant.
- Excellent sealing at min pressure.
- Push fit type Compression fitting involved two parts to join pipe.
- Pressure Rating.
- Compression type: PN: 6.0 Kg/cm².
- Push fit type: PN: 4.0 Kg/cm².
- Compression fittings are tested at 1.6 times of rated pressure in ambient as well as 60O C temperature.
