Impact Sprinklers

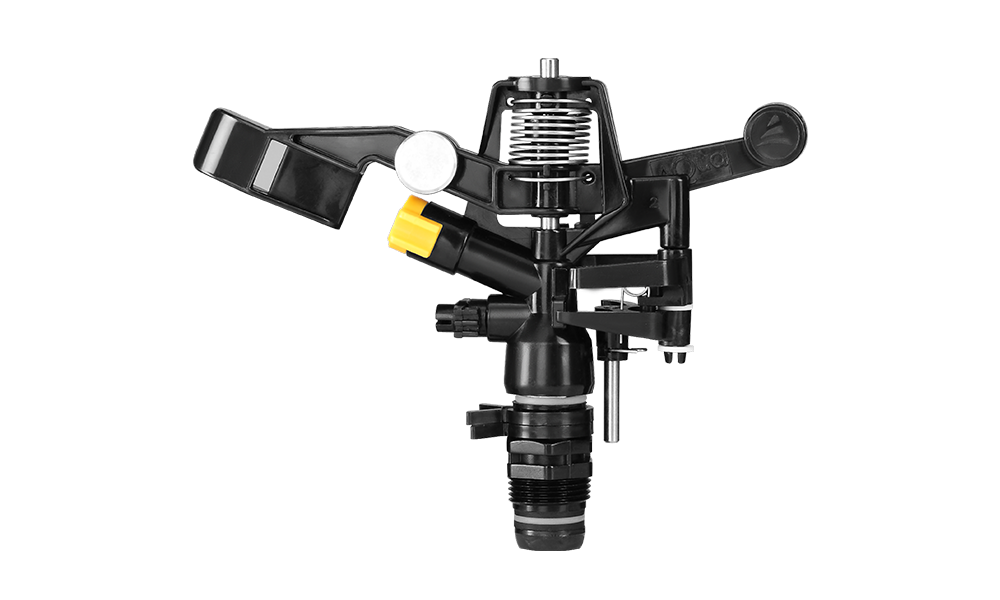

AQ-46PC (Part Circle)
The AQ-46PC is a ¾" part circle impact sprinkler for Efficient irrigation of field edges / turf application. Equipped with nozzles with integrated stream straightening vane for longer range and high water distribution uniformity.
Features
- Adjustable part-circle arc control: Ranging from 25 Degree to 335 Degree, allows coverage for specific parts without spraying areas that do not need water.
- Uniform Water Distribution: Ensures even coverage, with a spray reach of up to 15 meters, making it suitable for a wide range of applications.
- Convenient Maintenance: Equipped with color-coded bayonet nozzles for easier identification, cleaning, and service.
- Durability: Constructed from heavy-duty, high-impact plastic that resists corrosion, chemicals, and radiation, ensuring a long lifespan and reducing replacement costs.
Technical Specification
- Connection Size - ¾” BSP/NPT Male Thread
- Pressure range : 2 - 4 kg/cm2 (28 - 57 PSI)
- Flow rate range: 1138 - 2648 I/h ( 5.0 - 11.6 GPM)
- Diameter of coverage : 25.0 - 29.5 mtr (82 - 96.8ft)
- Trajectory Angle: 25°
