AQ-30B PC (Part Circle)


Impact Sprinklers

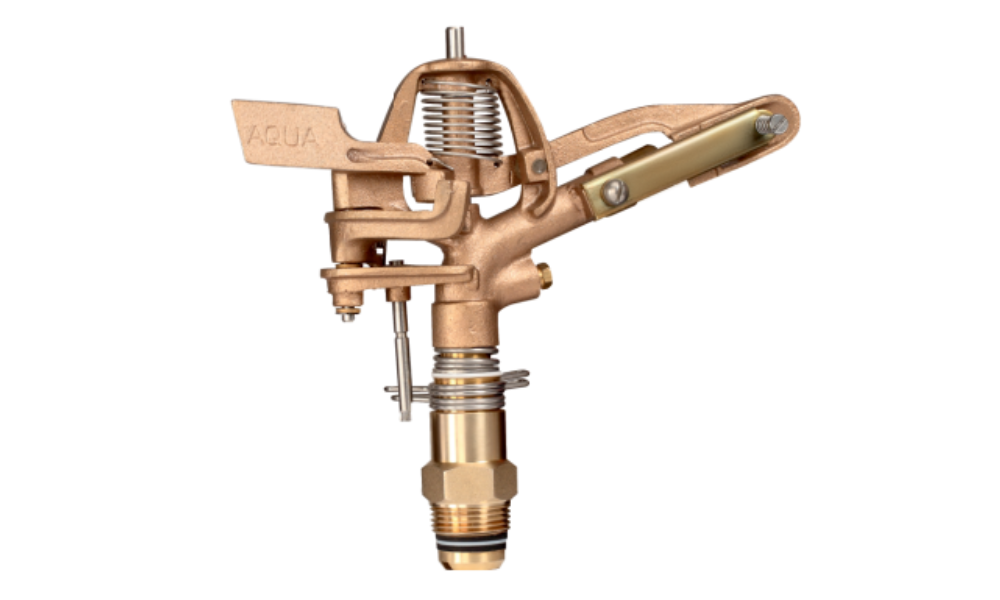

AQ-30B PC (Part Circle)

The AQ-30 BPC is a robust sprinkler designed for overhead systems. Engineered with a durable bronze body, heavy-duty brass components, and stainless steel pivot mechanisms, this sprinkler ensures reliable performance in both agricultural and industrial settings. Its design ensures uniform water distribution, providing effective coverage over large areas while withstanding various environmental conditions


Features

  • Connection Size: 1” BSP/NPT Female Thread
  • Durable Construction: Bronze body and arm with strong part circle components
  • Heavy-Duty Design: Incorporates brass nuts, tubes, nozzles, and a spreader arm for enhanced durability
  • Stainless steel pivot pin and part circle changing pin for precise irrigation control

Technical Specification

  • Connection Size: 1”
  • Material: Bronze body with brass nuts and stainless steel pivot pin
  • Operating Pressure Range: 2.5 - 5.0 kg/cm2 (35 - 70 psi)
  • Maximum Spacing: Up to 21 meters (70 feet)
  • Trajectory Angle: 23°
