Impact Sprinklers

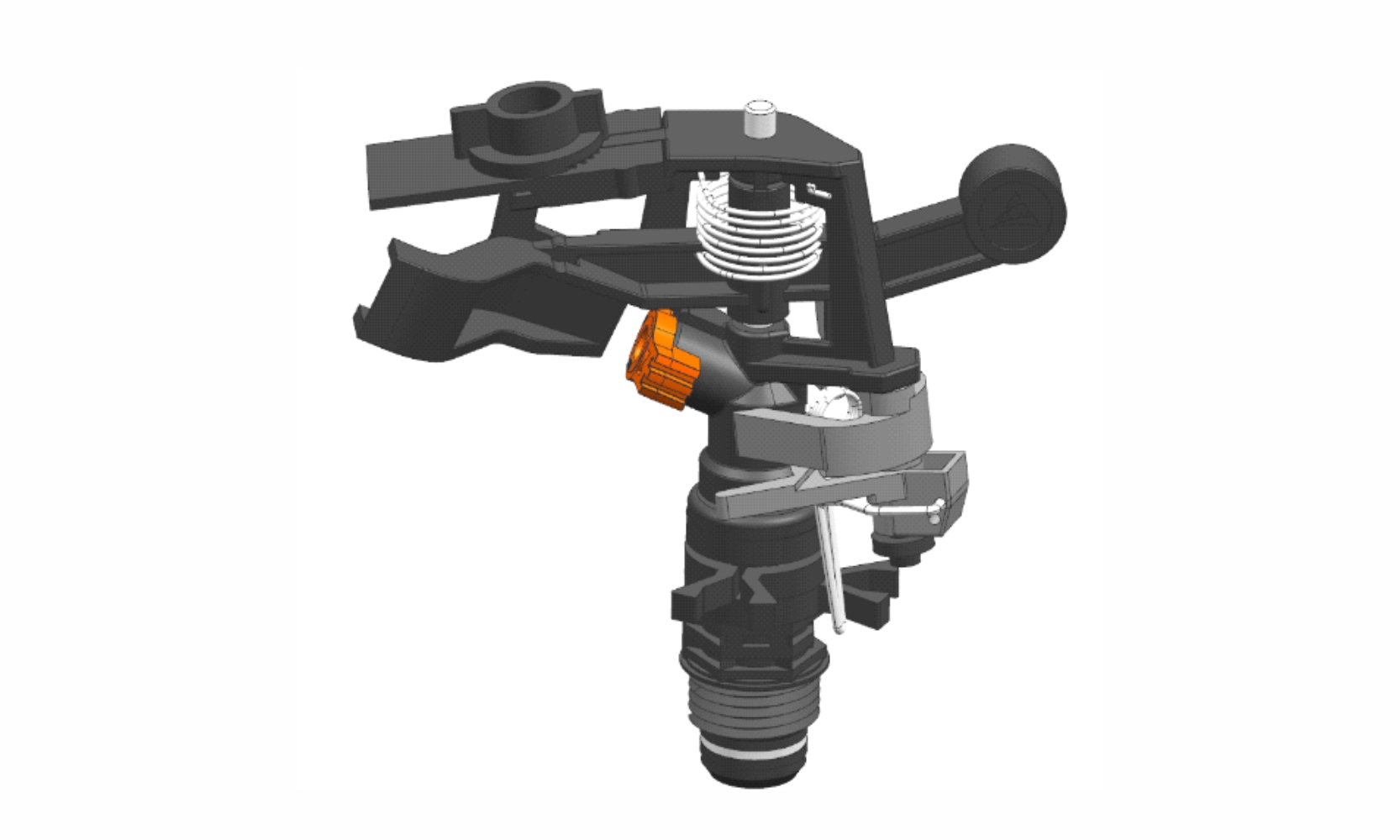

AQ-22PC (Part Circle)
The AQ-22PC is a ½" part circle impact sprinkler for Efficient irrigation of field edges/ turf application. It provides extended wetted diameter with high water distribution uniformity, even with low flow nozzles.
Features
- Adjustable part-circle arc control: Ranging from 15 Degree to 345 Degree, allows coverage for specific parts without spraying areas that do not need water.
- Uniform Water Distribution: Ensures even coverage with a spray reach of up to 12 metres, making it suitable for a wide range of applications.
- Convenient Maintenance: Equipped with color-coded bayonet nozzles for easier identification, cleaning, and service.
- Durability: Constructed from heavy-duty, high-impact plastic that resists corrosion, chemicals, and radiation, ensuring a long lifespan and reducing replacement costs.
Technical Specification
- Connection size - ½” BSP/NPT Male Thread
- Pressure range : 2 - 4 kg/cm2 (28 - 57 psi.).
- Flow rate range: 366 - 954 l/h ( 1.6 - 4.2 GPM)
- Diameter of coverage: 23 - 26 mtr. (76 -85 ft.)
- Trajectory Angle: 25°
