Impact Sprinklers

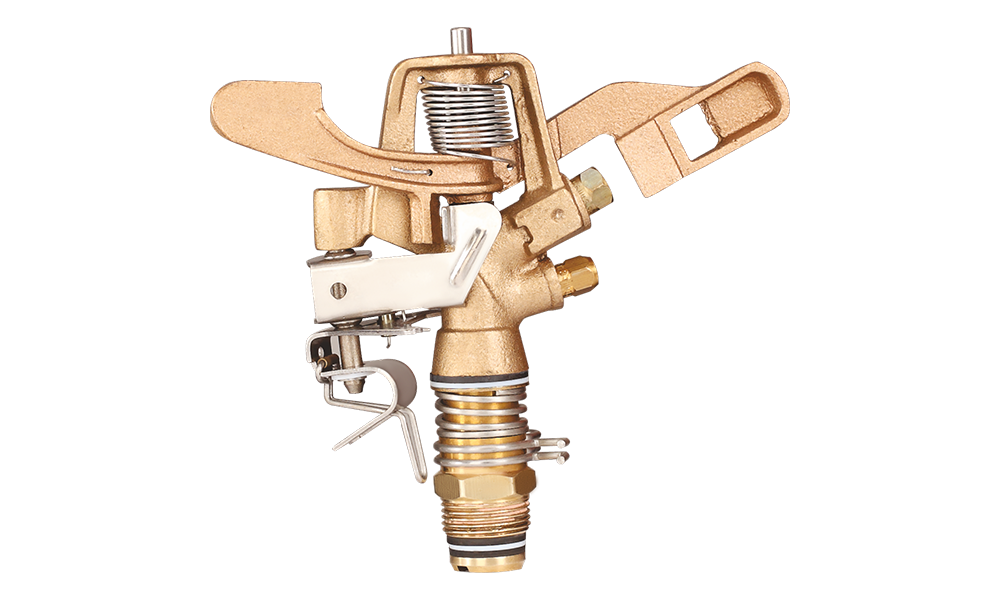

AQ-20PC (Part Circle)
The AQ-20PC is a ¾" part circle impact sprinkler for Efficient irrigation of field edges / turf application. Equipped with nozzles with integrated stream straightening vane for longer range with high water distribution uniformity.
Features
- Connection Size: ¾”
- Uniform Water Distribution: Ensures even coverage, with a spray reach of up to 15 metres, making it suitable for a wide range of applications.
- Durability: Heavy duty brass used for body, arm, nut, tube and nozzles while pivot pin and springs made of stainless steel.
- Adjustable part-circle arc control: Ranging from 25 Degree to 335 Degree, allows coverage for specific parts without spraying areas that do not need water
Technical Specification
- Connection size - ¾” BSP/NPT male threaded.
- Recommended Pressure 2.0 - 4.0 kg/cm2 or 30 - 55Psi
- Recommended spacing up to 15m or 50ft for higher distribution uniformity.
- Trajectory Angle: 25°
