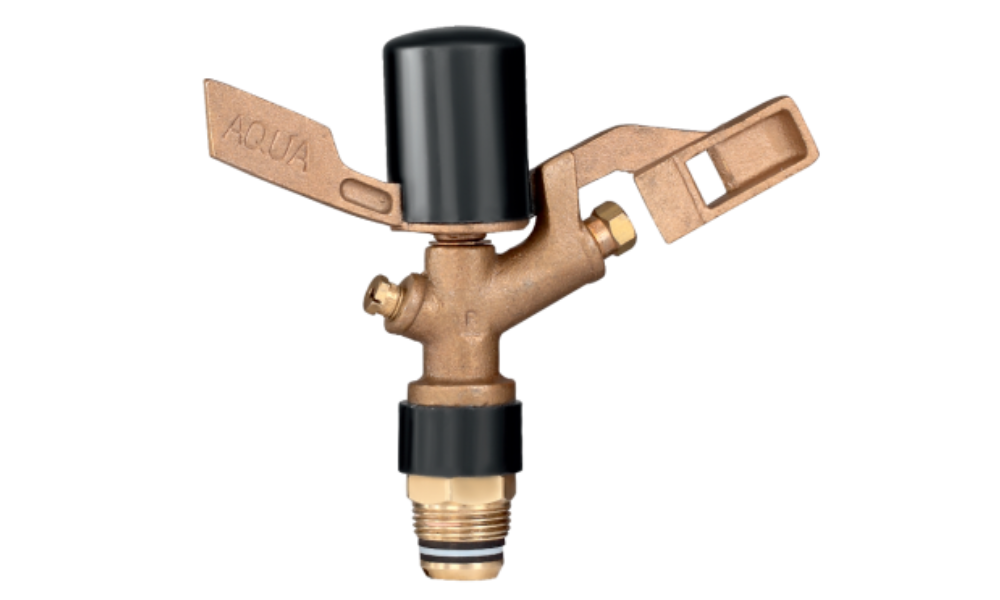

AQ-20AF I AFLA (Anti Frost Low Angle)


Impact Sprinklers

AQ-20AF I AFLA (Anti Frost Low Angle)

The AQ-20 AF is a robust medium-flow metal sprinkler designed specifically for overhead irrigation in frost-prone conditions. Ideal for vineyards, orchards, and vegetable crops on solid set systems. Engineered for frost conditions, this sprinkler gives a robust performance and efficient irrigation while minimizing ice accumulation on both plants and the sprinkler itself.


Features

  • Connection Size: ¾”
  • Top and bottom springs are protected by a cap made of specialized material to withstand sub-zero temperatures and prevent ice build-up on the springs
  • Durability: bronze body and arm, with heavy-duty brass nut and tube for increased strength
  • Bridgeless design to prevent ice accumulation on the sprinkler
  • Stainless steel pivot pin and specially designed SS springs for rapid rotation, preventing ice formation on plant leaves

Technical Specification

  • Recommended operating pressure: 2.0 - 4.0 kg/cm2 (30 - 55 psi)
  • Suggested spacing: Up to 15m (50ft) for optimal distribution uniformity
  • AQ-20 AF Trajectory Angle: 27°
  • AQ-20 AFLA Trajectory Angle: 7°
