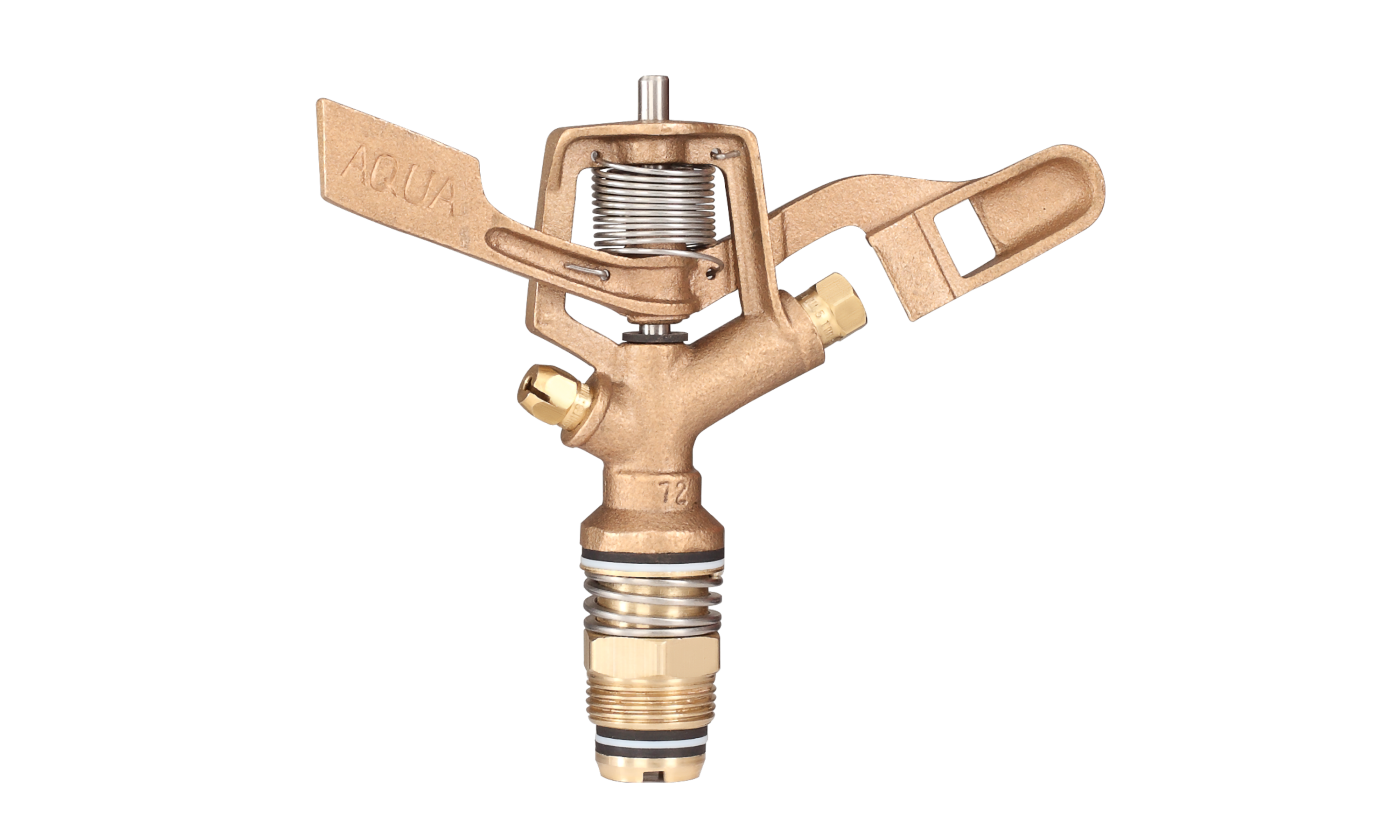

AQ-20


Impact Sprinklers

AQ-20

This is a general use medium flow¾" bronze impact sprinkler that is ideal for all types of crops irrigation compatible by overhead irrigation on solid set, permanent set, hard lines, portable lines, wheel lines and mechanically movable systems such as centre pivot irrigation systems.

  • The sprinkler nozzle has an in built stream straightening vane especially useful for regions where strong winds are prevalent

Features

  • Multifaceted agriculture sprinklers Multiple nozzle sizes for different water flow rates
  • Connection size - 3/4''
  • Durable Bronze body and arm (Also available in Brass/ Aluminium/ Zinc)
  • Heavy duty Brass Nut & Tube with stainless steel Pivot pin and springs Bearing & Sealing washers are made of material for extended life.

Technical Specification

  • Connection size - 3/4'' BSP/NPT male threaded.
  • Recommended Pressure 2.0 - 5.0 kg/cm2 or 30 - 70Psi
  • Recommended spacing up to 15m for higher distribution uniformity.
  • Trajectory Angle: 27°
